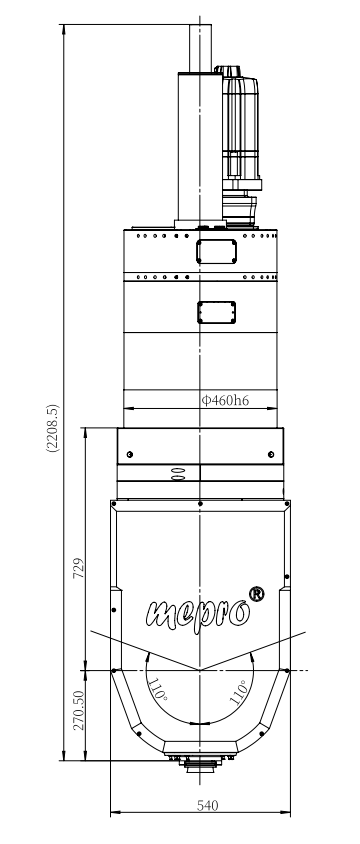

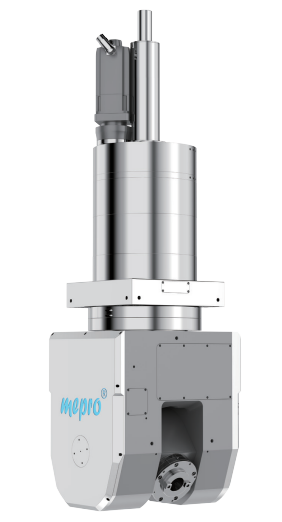

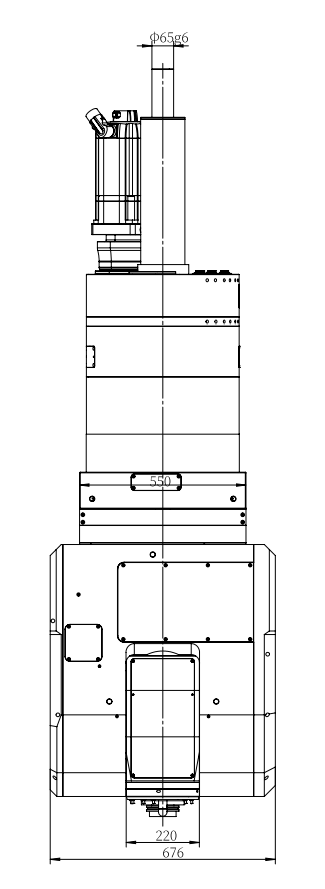

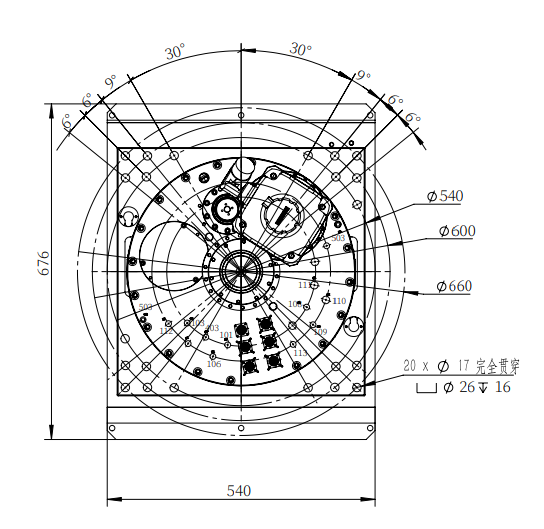

Parameter Table
|
A-axis continuous torque
| 5000Nm
|
A-axis hydraulic clamping torque
| 6000(60bar)Nm
|
Maximum swing speed of A-axis
| 10rpm
|
A-axis transmission ratio
| 1：250
|
A-axis angle range
| ±110°
|
A-axis encoder type
| Absolute formula
|
A-axis positioning accuracy
| 8″ VDI3441
|
A-axis repeated positioning accuracy
| 4″ VDI3441
|
Maximum torque of C-axis
| 5000Nm
|
C-axis hydraulic clamping torque
| 8000Nm(60bar)
|
Maximum swing speed of C-axis
| 10rpm
|
C-axis angle range
| ±220°
|
C-axis transmission ratio
| 1：160
|
C-axis encoder type
| Absolute formula
|
C-axis positioning accuracy
| 8″ VDI3441
|
C-axis repeated positioning accuracy
| 4″ VDI3441
|
Spindle parameters
|
Spindle torque
| 1232Nm
|
Maximum spindle speed
| 3000rpm
|
Main transmission ratio
| 1：1
|
Spindle power
| 41kW
|
hilt
| BT50
|
Pulling nail
| P50T-1
|
Lubrication method
| Oil gas lubrication
|
Total weight
| 2045kg
|
