Parameter Table
|
type
| Fanuc
| Siemens
|
| A-axis rated/maximum torque | 270/600Nm
| 325/614Nm |
| A-axis rated power | 3.9kW
| 4.1kW |
| A-axis maximum speed | 30rpm
| 30rpm |
| A-axis rated current | 22.5A
| 18A |
| A-axis tightening torque | 4000（60bar）Nm
|
| A-axis angle range | ±180°
|
| A-axis encoder type | absolute
|
| A-axis positioning accuracy | 8"VDI3441
|
| A-axis repeated positioning accuracy | 4"VDI3441
|
| C-axis rated/maximum torque | 270/600Nm
| 325/614Nm |
| C-axis rated power | 3.9kW
| 4.1kW |
| C-axis maximum speed | 30rpm
| 30rpm |
| C-axis rated current | 22.5A
| 18A |
| C-axis tightening torque | 4000（60bar）Nm
|
| C-axis angle range | ±180°
|
| C-axis encoder type | absolute
|
C-axis positioning accuracy
| 8"VDI3441
|
C-axis repeated positioning accuracy
| 4"VDI3441
|

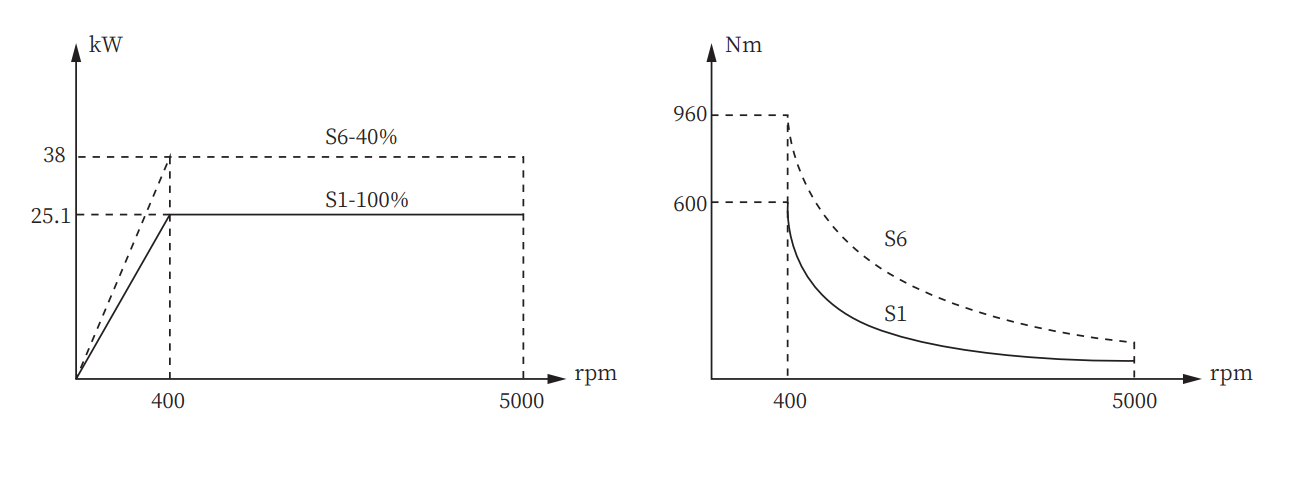

Spindle parameters
|
| Spindle S1 torque | 600Nm
|
| Maximum spindle speed | Maximum spindle speed
|
| Rated power of spindle | 25.1kW
|
| Knife handle | BT50（45°）
|
Gear lubrication method
| Oil gas lubrication
|
| Total weight | 760Kg
|
