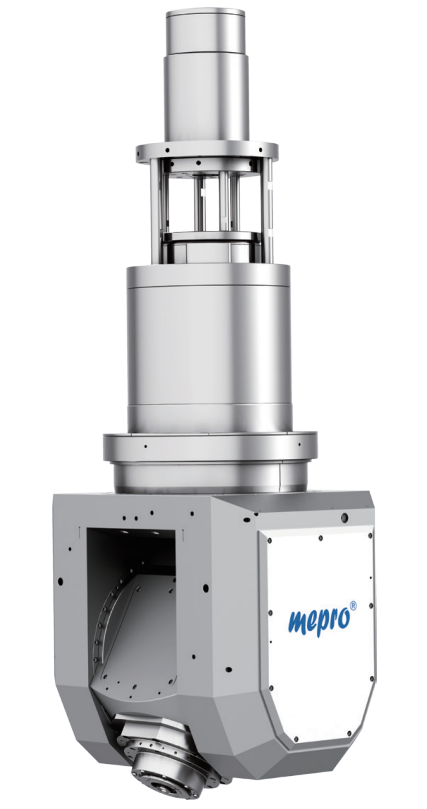

Parameter Table
|
| A-axis rated/maximum torque | 300/500Nm（水冷） |
A-axis rated power
| 3.7kW
|
| A-axis rated current | 11.2A |
A-axis maximum speed
| 60rpm
|
| A-axis tightening torque | 2000（60bar）Nm |
| Axis A angle range | ±110° |
| A-axis encoder type | absolute |
| A-axis positioning accuracy | 8"VDI3441
|
| A-axis repeated positioning accuracy | 4"VDI3441
|
| C-axis rated/maximum torque | 300/570Nm（水冷） |
| C-axis rated power | 6.3kW |
C-axis rated current
| 18.4A
|
| Maximum speed of C-axis | 60rpm |
| C-axis tightening torque | 2000（60bar）Nm |
| C-axis angle range | ±360° |
| C-axis encoder type | absolute
|
C-axis positioning accuracy
| 8"VDI3441
|
C-axis repeated positioning accuracy
| 4"VDI3441
|

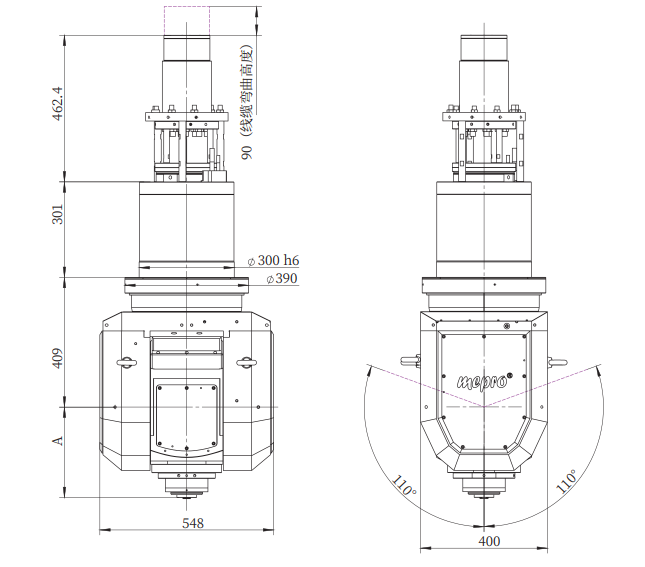

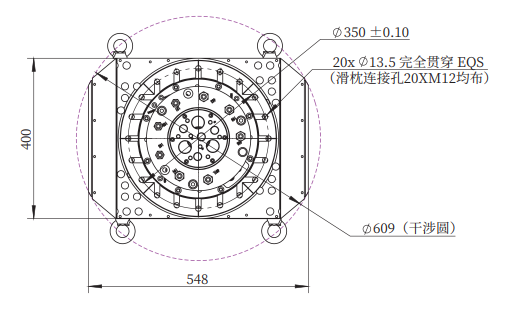

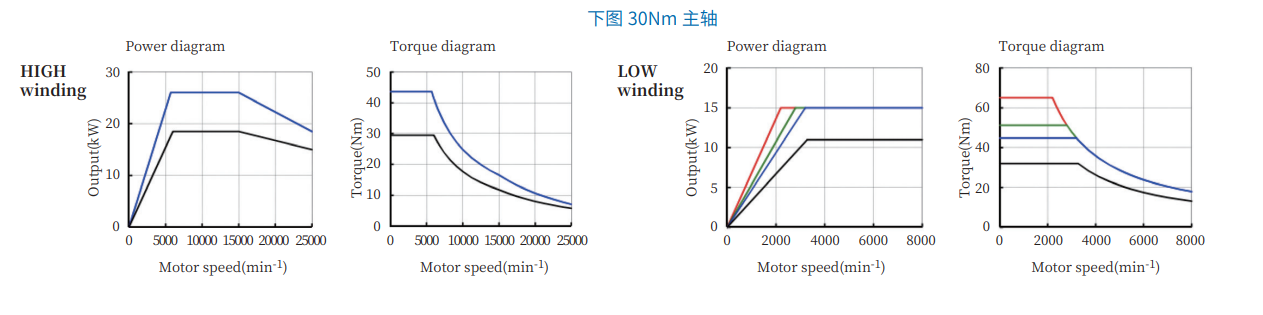

Spindle parameters
| 30Nm spindle |
| Y connection method | △ connection method
|
| Spindle S1 torque | 32Nm | 29.4Nm
|
Spindle S3 torque
| 44.8Nm
| 43.6Nm
|
Maximum spindle speed
| 8000rpm
| 20000rpm
|
Rated spindle speed
| 3280rpm
| 6000rpm
|
Rated power of spindle
| 11kW
| 18kW
|
| Knife handle | HSK-A63 |
Bearing lubrication method
| Grease lubrication
|
| A | 285mm |
Bearing lubrication method
| Grease lubrication |
Total weight
| 597kg |
